Home > Products > Industrial Lenses > SWIR Industrial Lenses

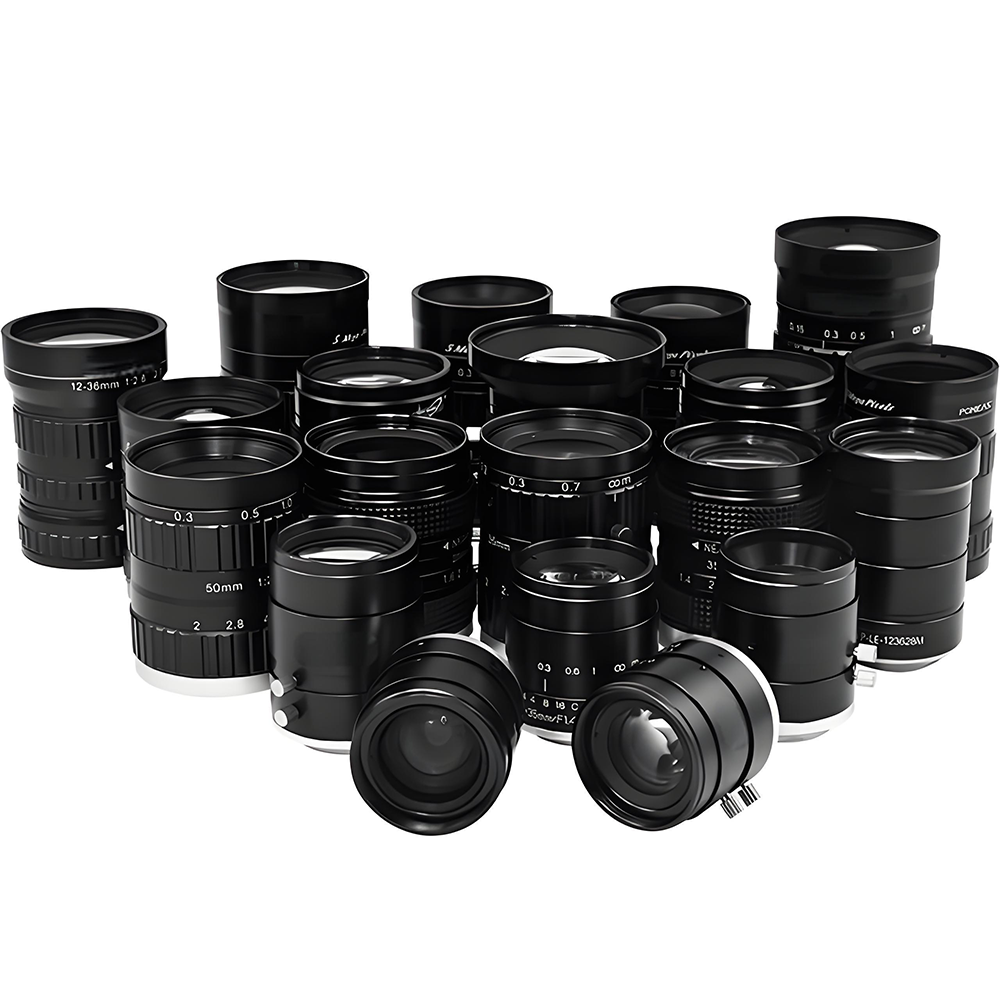

SWIR Industrial Lenses

SWIR Industrial Lenses

Product Description
Focus：16mm/25mm/35mm/45mm/50mm，Aperture：F1.4-11，Wavelength Range：900-1700nm，Resolution：5.3 million pixels，Min distance：0.15m，Interface：C Mount
Product Features

◆ Anti-shake design

◆ Large aperture, high light intensity

◆ Suitable for crack detection in photovoltaic industry

Model Focus Aperture Resolution Wavelength Range Max Image Surface Size Pixel Size Minimum Distance Interface TV1
HS-LEN-C1614SWIR-1B 16mm F1.4-F11 5300000 900-1700nm 1 5nm 0.15m C 0.71%
HS-LEN-C2514SWIR-1B 25mm F1.4-F11 5300000 900-1700nm 1 5nm 0.25m C 0.6%
HS-LEN-C2514SWIR-1Z 25mm F1.4-F11 5300000 900-1700nm 1 5nm 0.28m TS-E C 0.6%
HS-LEN-C3514SWIR-1B 35mm F1.4-F11 5300000 900-1700nm 1 5nm 0.2m C 0.6%
HS-LEN-LS4514SWIR-28 45mm F1.4-F16 900-1700nm 28mm 7μm 0.2-1m M42*1
HS-LEN-LS5012IR-28 50mm F1.2 950-1300nm 28mm 3.45μm 0.364-0.433m M42*1
