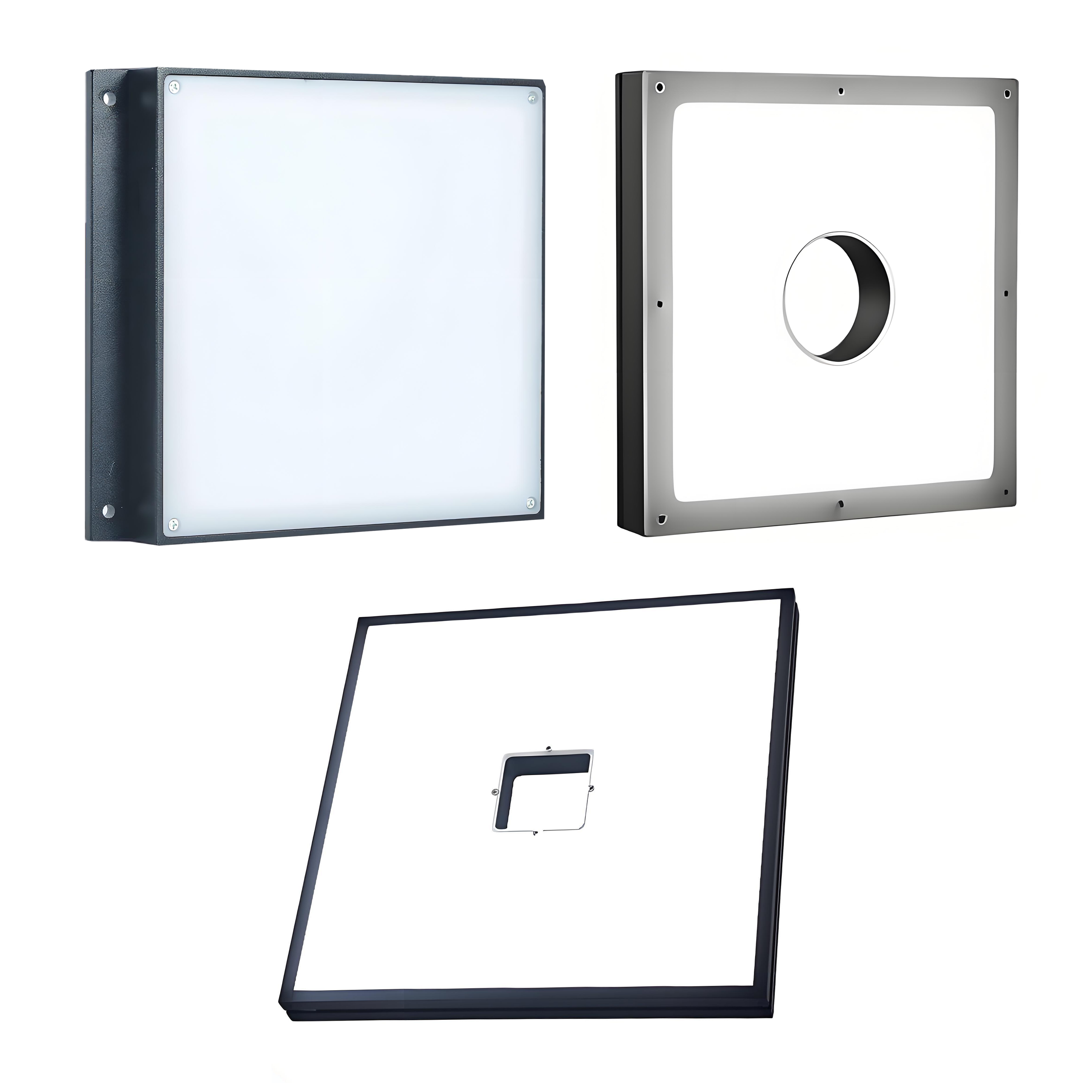

Backlights Light

Backlights Light

Product Features

◆High brightness, uniformity exceeds 85%

◆The frame of the shell is narrow and the effective light-emitting surface ratio is high.

◆Color can be customized : R/G/B/W, IR:800-1700nm, UV: 200-420nm

Application scope

◆ Outline size detection

◆ Detection of surface scratches and internal foreign matter on transparent objects

◆ Workpiece size measurement

◆ Metal contour burr detection

◆ Film stain detection

◆ Shape inspection of electronic components and ICs

Model Color Size Voltage Current Power
HS-PB-100100-12-R 红 100mm*100mm 24V 0.5A 12W
HS-PB-100100-12-G 绿 100mm*100mm 24V 0.5A 12W
HS-PB-100100-12-B 蓝 100mm*100mm 24V 0.5A 12W
HS-PB-100100-12-W 白 100mm*100mm 24V 0.5A 12W
HS-PB-150150-18-R 红 150mm*150mm 24V 0.75A 18W
HS-PB-150150-18-G 绿 150mm*150mm 24V 0.75A 18W
HS-PB-150150-18-B 蓝 150mm*150mm 24V 0.75A 18W
HS-PB-150150-18-W 白 150mm*150mm 24V 0.75A 18W
HS-PB-200200-24-R 红 200mm*200mm 24V 1A 24W
HS-PB-200200-24-G 绿 200mm*200mm 24V 1A 24W
HS-PB-200200-24-B 蓝 200mm*200mm 24V 1A 24W
HS-PB-200200-24-W 白 200mm*200mm 24V 1A 24W
HS-PB-250250-36-R 红 250mm*250mm 24V 1.5A 36W
HS-PB-250250-36-G 绿 250mm*250mm 24V 1.5A 36W
HS-PB-250250-36-B 蓝 250mm*250mm 24V 1.5A 36W
HS-PB-250250-36-W 白 250mm*250mm 24V 1.5A 36W
HS-PB-300300-48-R 红 300mm*300mm 24V 2A 48W
HS-PB-30030-48-G 绿 300mm*300mm 24V 2A 48W
HS-PB-30030-48-B 蓝 300mm*300mm 24V 2A 48W
HS-PB-30030-48-W 白 300mm*300mm 24V 2A 48W
HS-PB-400400-80-R 红 400mm*400mm 24V 3.5A 80W
HS-PB-400400-80-G 绿 400mm*400mm 24V 3.5A 80W
HS-PB-400400-80-B 蓝 400mm*400mm 24V 3.5A 80W
HS-PB-400400-80-W 白 400mm*400mm 24V 3.5A 80W
HS-PB-500500-136-R 红 500mm*500mm 24V 5.5A 136W
HS-PB-500500-136-G 绿 500mm*500mm 24V 5.5A 136W
HS-PB-500500-136-B 蓝 500mm*500mm 24V 5.5A 136W
HS-PB-500500-136-W 白 500mm*500mm 24V 5.5A 136W
