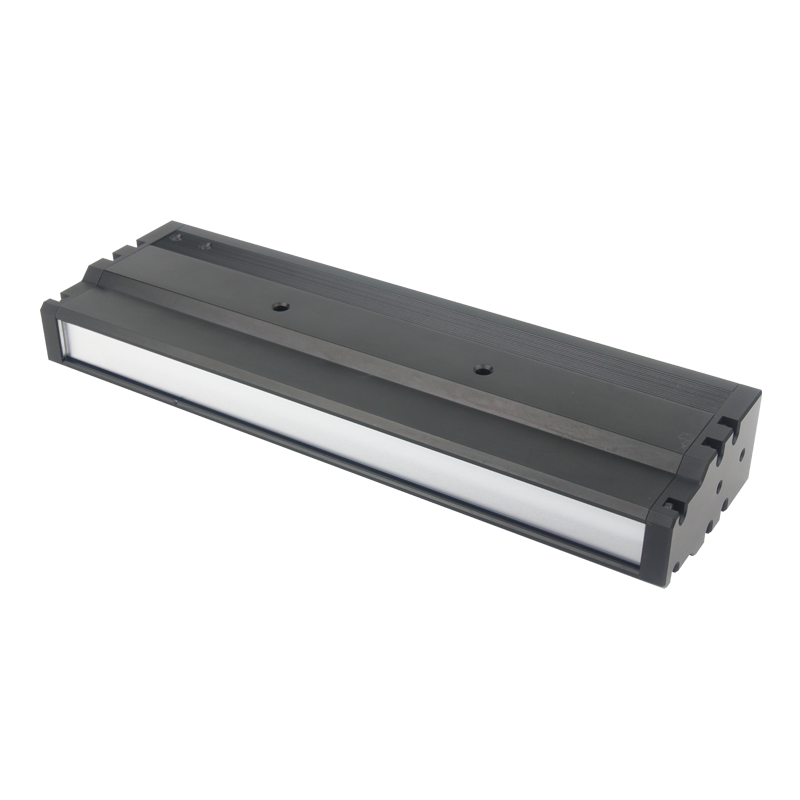

High Intensity Line Scan Light

Product Features

◆Maximum illumination 9 million lux (WD=50mm, water cooling)

◆Small lighting angle, suitable for longer working distances

◆Can be used with diffusion film to achieve uniform illumination of highly reflective workpieces or used as backlight

Application scope

◆ Ultra-high-speed online detection

◆ Long-distance high-brightness online detection

◆ High-speed printing quality inspection

◆ Lithium battery coating detection

◆ Mobile phone screen surface defect detection

◆ Metal surface scratch detection

◆ Graphene material appearance inspection

Model	Color	Emitting Length	Voltage	Power
HS-LI-300-60-R	Red	300mm	24V	60W
HS-LI-300-60-G	Green	300mm	24V	60W
HS-LI-300-60-B	Blue	300mm	24V	60W
HS-LI-300-60-W	White	300mm	24V	60W
HS-LI-400-80-R	Red	400mm	24V	80W
HS-LI-400-80-G	Green	400mm	24V	80W
HS-LI-400-80-B	Blue	400mm	24V	80W
HS-LI-400-80-W	White	400mm	24V	80W
HS-LI-500-100-R	Red	500mm	24V	100W
HS-LI-500-100-G	Green	500mm	24V	100W
HS-LI-500-100-B	Blue	500mm	24V	100W
HS-LI-500-100-W	White	500mm	24V	100W
