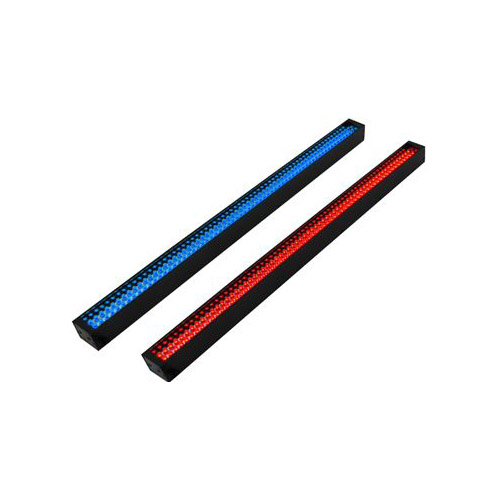

Bar Light

Bar Light

Product Features

◆Flexible size design

◆Colors optional, free combination

◆SMD lamp beads, large divergence angle, high brightness

◆Comes standard with a highly uniform diffusion plate that can be used as a backlight

Application scope

◆ Large field of view uniform lighting detection

◆ PCB board character recognition

◆ QR code detection

◆ Large field of view mobile phone screen positioning detection

◆ Hardware surface defect detection

◆ High-angle uniform illumination

Model Color Emitting Size Voltage Power
HS-LIL-100-5-R Red 100mm 24V 5W
HS-LIL-100-5-G Green 100mm 24V 5W
HS-LIL-100-5-B Blue 100mm 24V 5W
HS-LIL-100-5-W White 100mm 24V 5W
HS-LIL-200-10-R Red 200mm 24V 10W
HS-LIL-200-10-G Green 200mm 24V 10W
HS-LIL-200-10-B Blue 200mm 24V 10W
HS-LIL-200-10-W White 200mm 24V 10W
HS-LIL-300-15-R Red 300mm 24V 15W
HS-LIL-300-15-G Green 300mm 24V 15W
HS-LIL-300-15-B Blue 300mm 24V 15W
HS-LIL-300-15-W White 300mm 24V 15W
HS-LIL-400-20-R Red 400mm 24V 20W
HS-LIL-400-20-G Green 400mm 24V 20W
HS-LIL-400-20-B Blue 400mm 24V 20W
HS-LIL-400-20-W White 400mm 24V 20W
HS-LIL-500-25-R Red 500mm 24V 25W
HS-LIL-500-25-G Green 500mm 24V 25W
HS-LIL-500-25-B Blue 500mm 24V 25W
HS-LIL-500-25-W White 500mm 24V 25W
HS-LIL-600-30-R Red 600mm 24V 30W
HS-LIL-600-30-G Green 600mm 24V 30W
HS-LIL-600-30-B Blue 600mm 24V 30W
HS-LIL-600-30-W White 600mm 24V 30W
