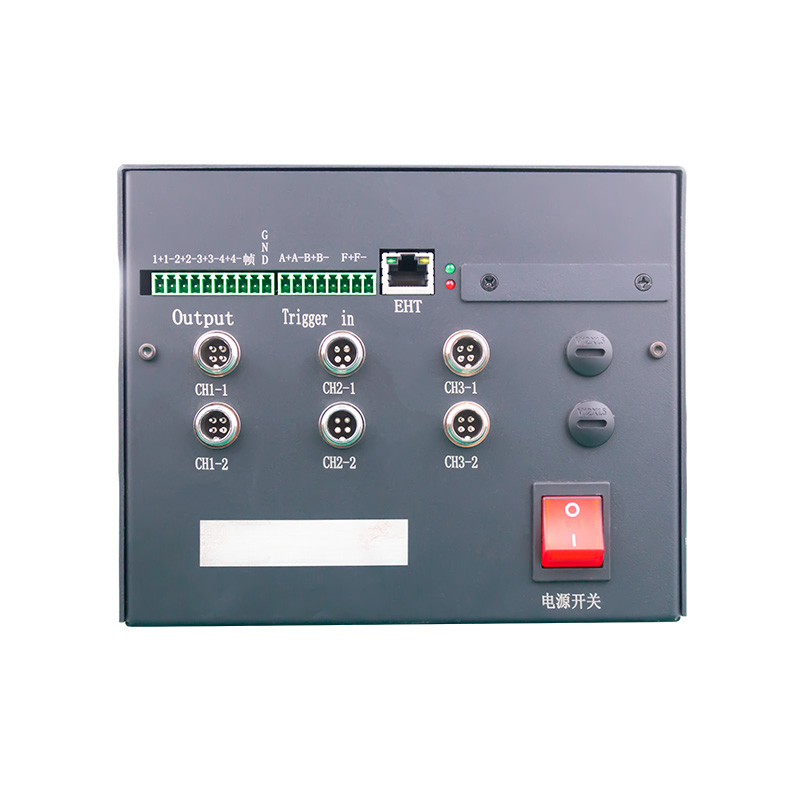

Combined Control and Trigger Timing LED Strobe Controller

Combined Control and Trigger Timing LED Strobe Controller

Product Description
During line scan detection, the coordination of camera and controller switches lights on and off separately at a high speed, and corresponding images from different light can be obtained at 1 scan, thus realizing the multi-station effect in single station, saving space and cost, and greatly improving detection efficiency
Product Features

◆ LED instantaneous brightness is less than 0.1us

◆ Minimum adjustment unit 1us

◆ Pass external signals through the controller to achieve switching of up to four light sources.

◆ Output pulse width can be set

Item Parameter
Input Voltage AC110-240V 50-60Hz
Output Power 600-1500W
Single Channel Instantaneous output current 20A
Control Accuracy 0.1us
response Delay <0.3us
Channel 4
Maximum Frequency 80Khz
Pulse Width Timing 20us
Configuration 100M Ethernet, using TCP/IP
Trigger Mode Rising Edge
Trigger Input Voltage 5V differential or 5V TTL
