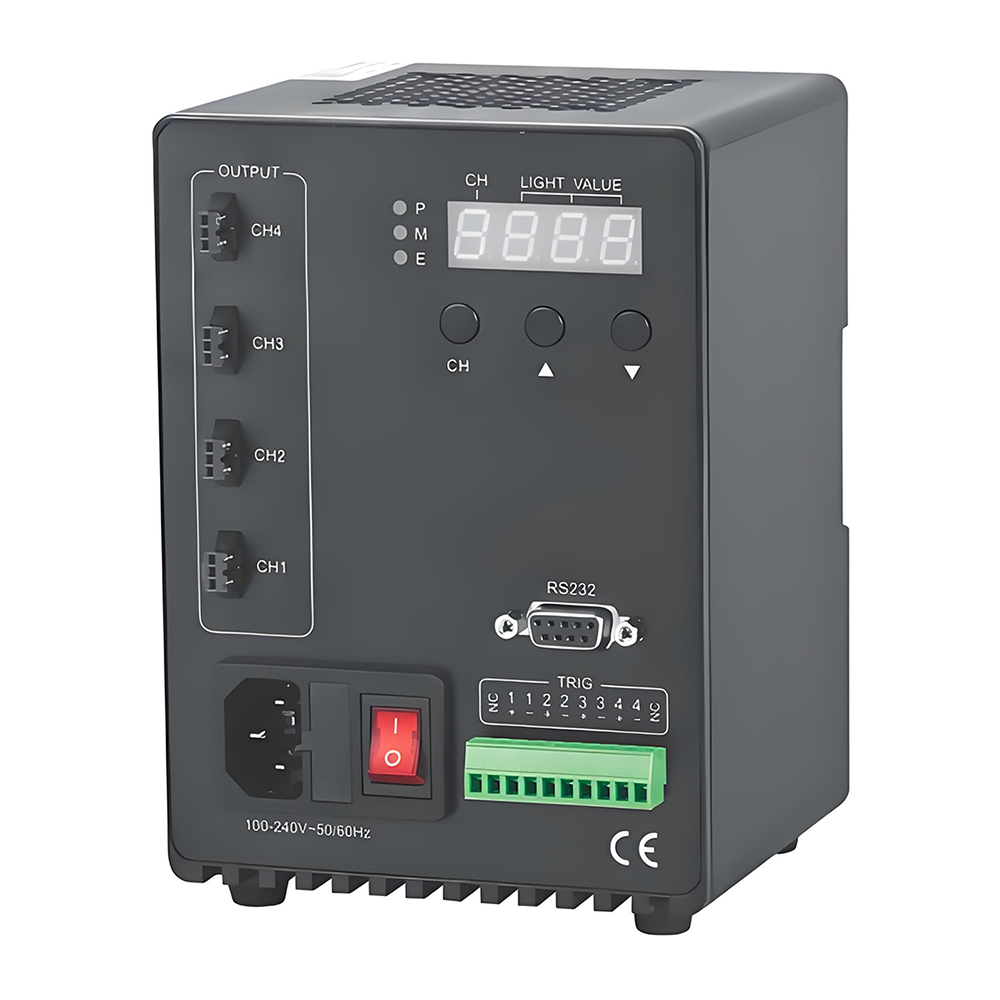

Strobe Overdrive Digital Controller

Strobe Overdrive Digital Controller

Product Description
Instantaneous high brightness, minimum adjustment unit of 1us, LED reaches peak brightness time of less than 3us, standard four channels, the number of channels can be customized according to needs, and the power can be customized
Product Features

◆ Light source brightness increased by 30 times or more

◆ Manually adjustable, with digital display

◆ Minimum adjustment accuracy:1μm

◆ The external trigger input adopts high-speed optocoupler design,Stable and reliable

Item Parameter
Input Voltage AC110-240V 50-60Hz
Output Power 100-1000W
Single channel maximum output current 10A
Single channel maximum output power 750W
Control accuracy 1μs
Minimum luminous time 10μs
Maximum luminous time 200μs
Trigger frequency ≤20Khz
Configuration 100M Ethernet, using TCP/IP
Trigger Mode Rising Edge
Trigger Input Voltage 5V differential or 5V TTL
