Home > Products > Controller > Constant voltage controller

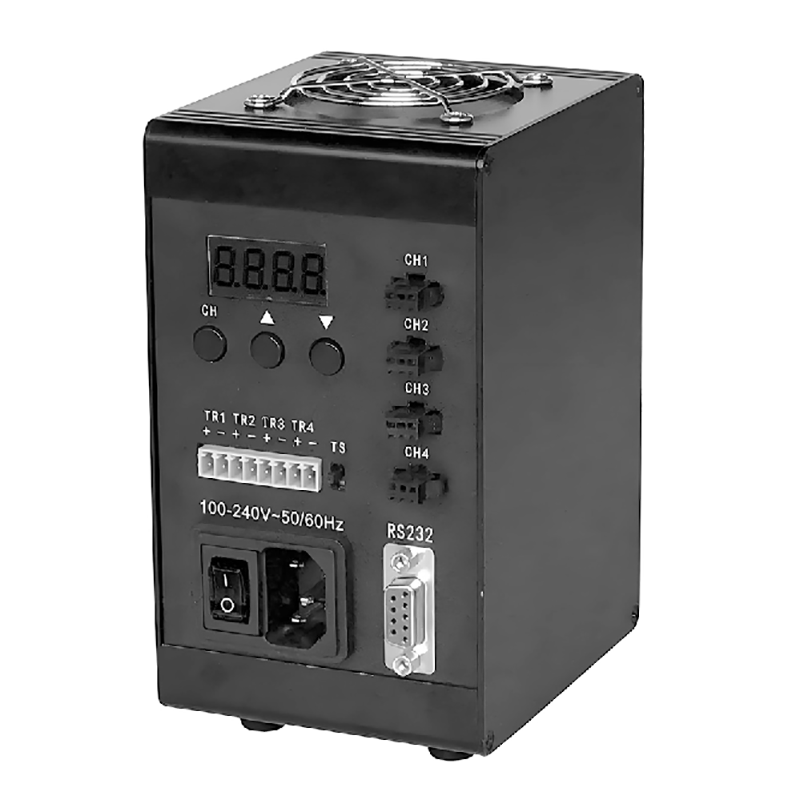

Constant voltage controller

Constant voltage controller

Product Description
Digital constant voltage, 255 level brightness adjustment, network communication, digital display, manual setting, and upper computer adjustment are all available, with a minimum adjustment accuracy of 10us. Standard dual or four channels, up to 8 channels, more channels can be customized, and voltage and power can be customized
Product Features

◆ 24V constant voltage output

◆ 255 levels of brightness adjustment

◆ Can be set manually, with digital display

◆ 4 outputs, more channels can be customized

Item Parameter
Input Voltage AC110-240V 50-60Hz
Output Power 600-1000W
Single channel maximum output current 6A
Control Accuracy 10us
response Delay <0.3us
Channel 4
Maximum Frequency 30Khz
Voltage Input High(VIH) Pulse width control luminous time
Configuration 100M Ethernet, using TCP/IP
Trigger Mode Rising Edge
Trigger Input Voltage 5V differential or 5V TTL
Output Mode constant voltage
