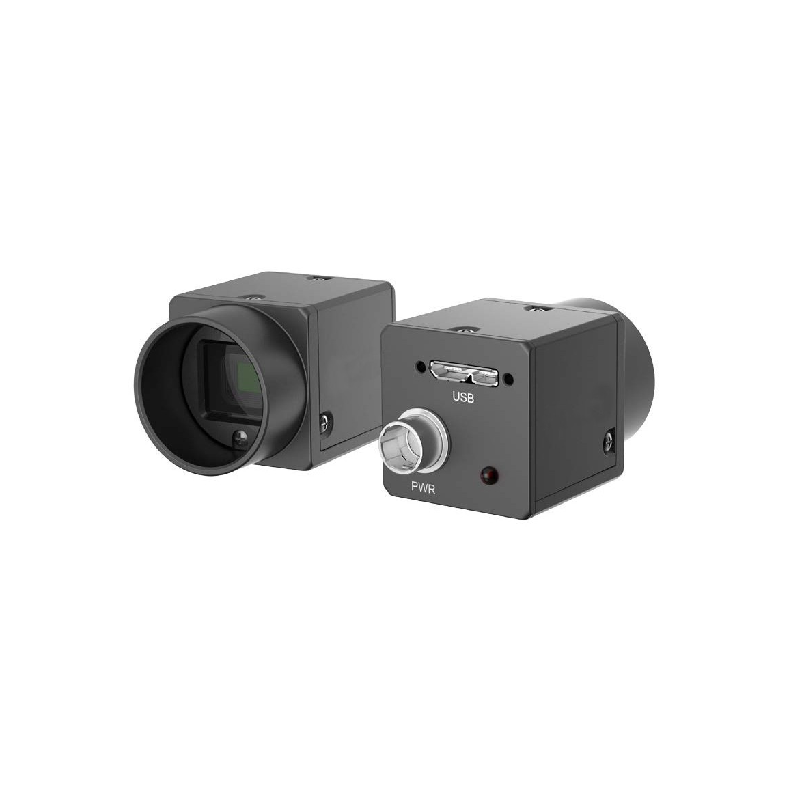

Large format scanning cameras

Large format scanning cameras

Product Features

◆Rolling shutter CMOS sensor

◆Maximum resolution: 1.3 billion pixels

◆Maximum frame rate at full resolution is 31fps

Application scope

◆ High-precision mechanical measurement

◆ Appearance inspection of FPD and 3C components

◆ Wafer surface inspection

◆ Visual inspection of electronic components

◆ Astronomical observations, scientific experiments

Resolution Mono/Color Pixel Size Maximum framerate Data Interface
6240 * 4168 M / C 3.76μm * 3.76μm 31fps@8bit,24fps@10bit,12fps@12bit Camera Link
8bit:6240 * 4168 ;10/12bit:6208 * 4168 M / C 9.325μm * 9.325μm 36.5 fps CoaXPress
8192 * 5556 M 2.315μm * 2.315μm 2.5fps(5fps with SAccel™) GigE Vision
9568 * 6380 M / C 3.76μm * 3.76μm 13.06 fps Camera Link
9344 * 7000 M / C 3.2μm * 3.2μm 5.32fps@8bit,2.55fps@12bit USB3.0
10000 * 7096 M 3.1μm * 3.1μm 4.2 fps Camera Link
11656 * 8742 M / C 3.76μm * 3.76μm 7.86 fps Camera Link
11648 * 8742 M / C 3.76μm * 3.76μm 8.5fps@8/10bit;7.83fps@12bit CoaXPress
11248 * 9200 M / C 3.2μm * 3.2μm 24.85fps@8/10bit,23.87fps@12bit CoaXPress10
13248 * 9176 M / C 2.2μm * 2.2μm 6.92fps@8bit,5.54fps@10bit Camera Link
13440 * 9536 M / C 3.45μm * 3.45μm 22.14fps@8bit,19.82fps@10bit,12.98fps@12bit CoaXPress10
14192 * 10640 M / C 3.76μm * 3.76μm 5.28 fps Camera Link
8bit:14192 * 10640;10/12bit:14144 * 10640 M / C 3.76μm * 3.76μm 6.02fps@8/10bit;5.20fps@12bit CoaXPress
42576 * 31920 M / C 3.76μm * 3.76μm 6.02fps@8/10bit,5.20fps@12bit CoaXPress
