Sequential Strobe Lighting System

Product Description

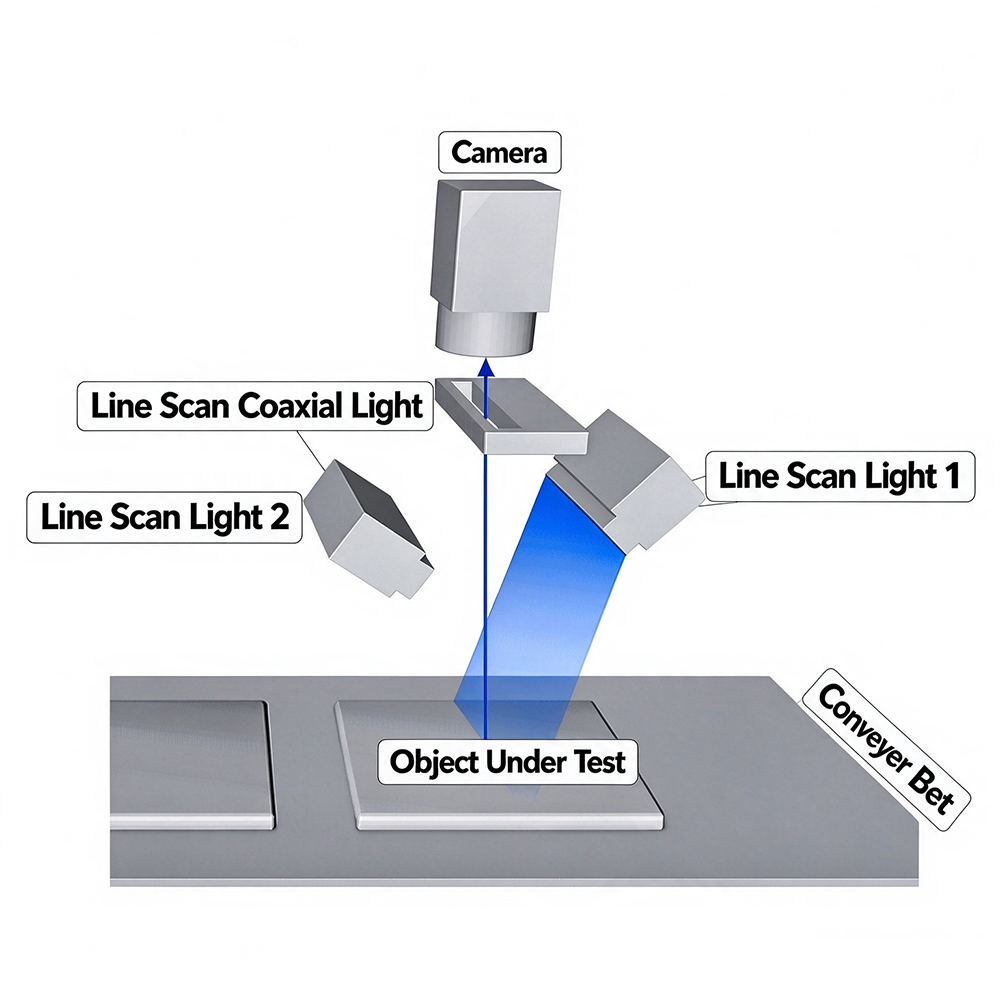

One line scan camera works with multiple light sources of different colors or illumination angles. The corresponding light source is switched for each frame acquisition, enabling multi-angle, multi-color and multiple lighting modes in a single capture.

Product Features

◆ Pulse width adjustment resolution: 0.1 μs

◆ Max. Frequency: 1,000,000 Hz

◆ 2 / 4 / 6 / 8 / 10 channels optional

◆ It supports combinations of line scan lights, line scan coaxial lights, tunnel line scan lights, slit line scan area lights, bar lights, or multi-color light sources.

Item	Parameter	Remark
Input	AC 110-240V	50-60Hz
Power	300-3000W	Higher power available on custom request
Trigger Input Voltage	5V Differential or 5V TTL >
Trigger Output Voltage	V Differential or 5V TTL
Max. Instantaneous Output Current per Channel	20A	Start-up Time < 0.2 μs
Control Resolution	0.1μs
Response Latency	< 0.3μs
Trigger Mode	Edge Trigger
Channels	2 / 4 / 6 / 8 / 10 channels optional	Additional channels available upon request
Frequency	1,000,000Hz
Communication Interface	Ethernet	TCP, related DLL
